Product Display
Specification
Product name |
WGP 103 |
Product number |
WGP103-51212 |
Input voltage |
12V2A |
recharging current |
0.6~0.8A |
charging time |
about 6h |
output voltage current |
5V 2A+ 9V 1A +9V 1A |
Output Power |
7.5W-25W |
Maximum output power |
25W |
protection type |
Overcharge, overdischarge, overcurrent, short circuit protection |
Working temperature |
0℃~45℃ |
Input Features |
DC12v2A |
Switch mode |
Single machine starts, double-click to close |
Output port characteristics |
USB5V 12V/12V |
accessories |
MINI UPS*1 Instruction Manual*1 Y Cable(5525-5525)*1 DC Cable(5525-5525)*1 DC Connector(5525-35135)*1 |
Product capacity |
38.48WH |
Product color |
black/white |
Single cell capacity |
3.7/2600amh/2600amh |
Product Size |
116*73*24mm |
Cell quantity |
4PCS |
Cell cycle life |
500 |
single product net weight |
248g |
Gross weight of a single product |
346g |
FCL product weight |
13kg |
FCL product weight |
13kg |
Carton size |
42*23*24cm |
FCL product weight |
13kg |
Single product packaging size |
205*80*31mm |
Qty |
36PCS |
Product Details

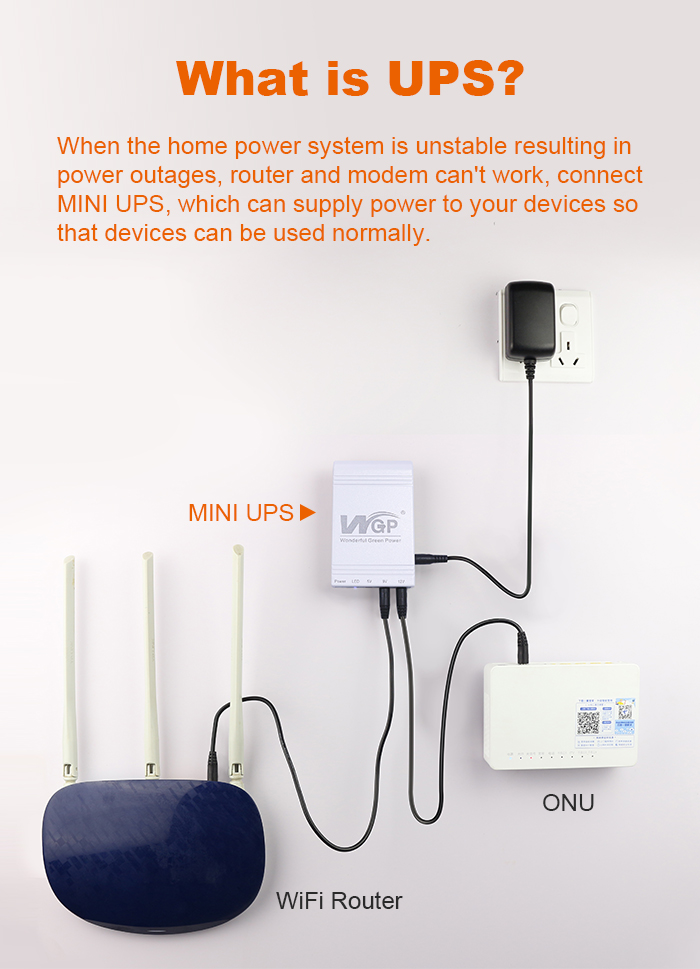

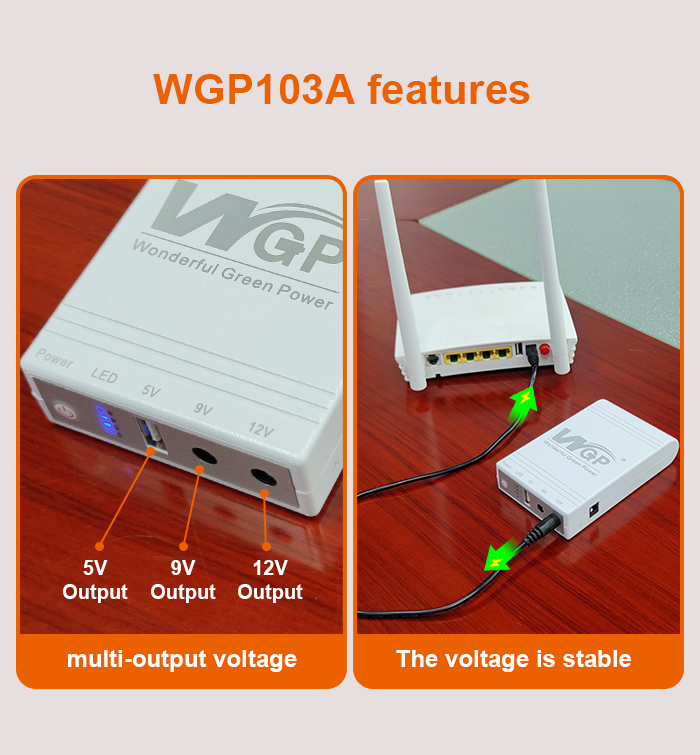

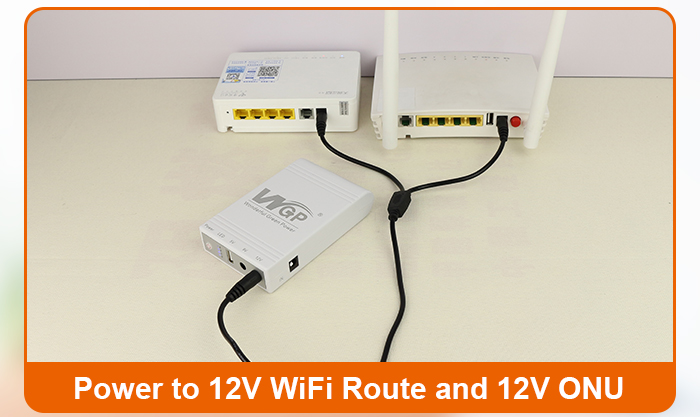

MINI UPS 103A has three output ports: USB5V DC9V 12V. It can power two devices at the same time, such as router + ONU, router + mobile phone. After testing, it can power the device for more than 6H.
The 103A battery uses A-grade cells. The difference between A-grade cells and C-grade cells is that A-grade cells are real, have longer service life, and are not easy to burn out, while C-class cells have false capacity and short service life. Easy to short circuit.

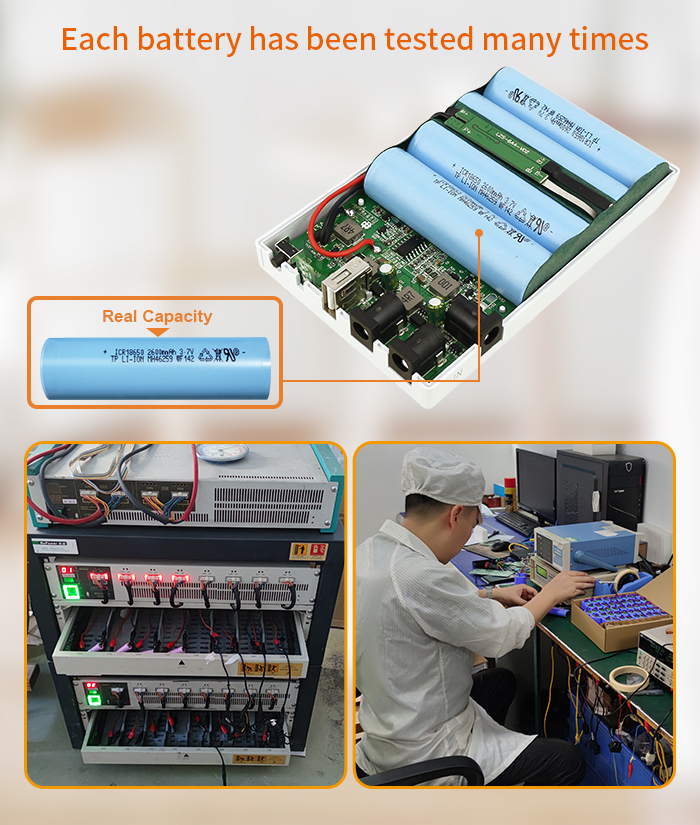

The battery cells have been strictly tested by instruments. We have quality inspection personnel with 15 years of experience and a total of 17 production processes. During the production process, we pay attention to battery testing and inspection.
Application Scenario
The battery cells have been strictly tested by instruments. We have quality inspection personnel with 15 years of experience and a total of 17 production processes. During the production process, we pay attention to battery testing and inspection.
